MAtricks Wings
| grandMA3 ユーザマニュアル » MAtricks と Shuffle » Wings | Version 2.2 |
Wings in the MAtricks separate the selection into the number of wings set and select devices from each wing from opposite directions.
It is better explained with examples.
例- Ten Fixtures One Axis
In this example, there are ten fixtures (1 through 10).
They are selected from 1 to 10 without any specific grid information. Highlight is activated.
Since there is no grid information, the fixtures are only on one axis - the X-axis.
Press Next to make the MAtricks X value 1.

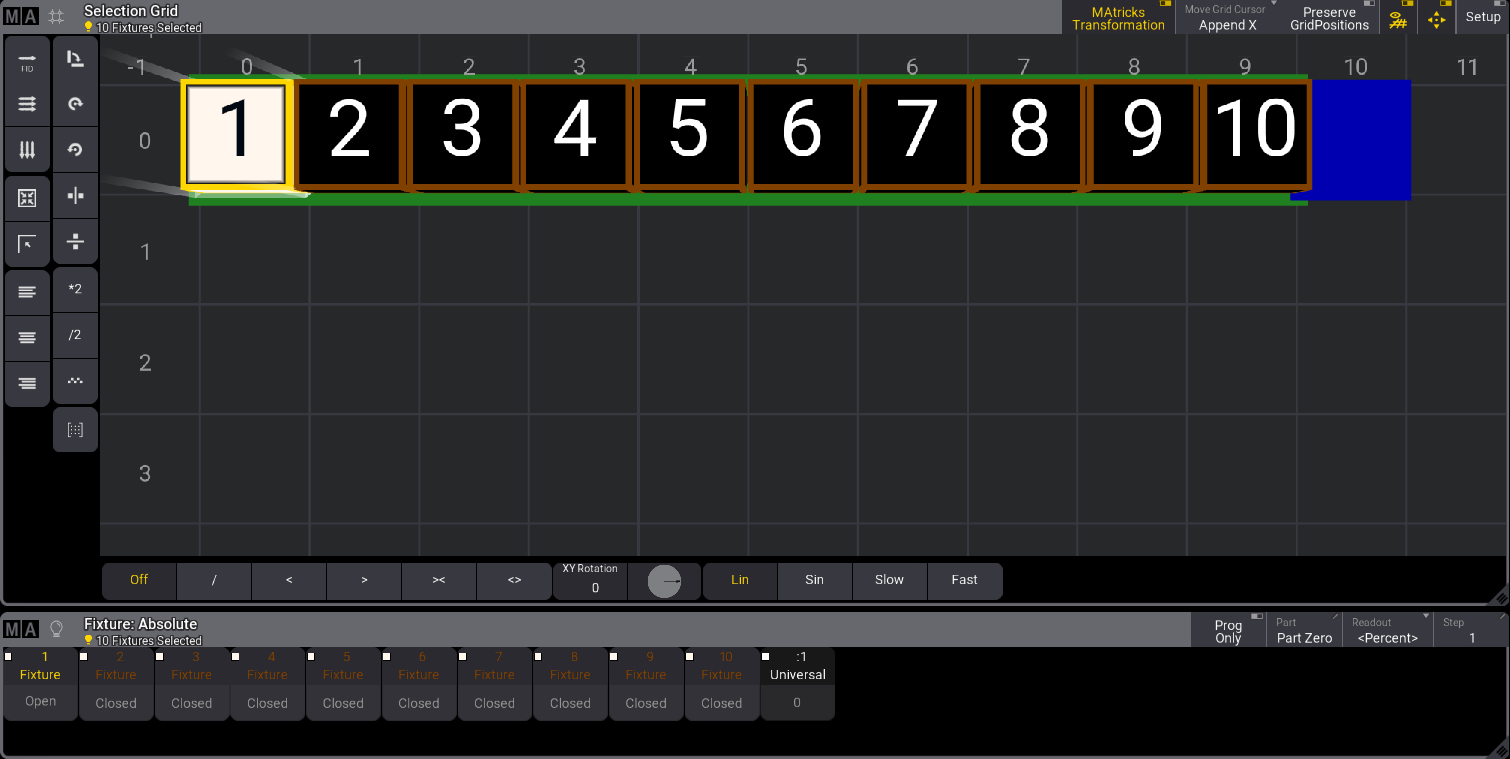

Ten fixtures with MAtricks X at 1 - No XWings
Ten fixtures with MAtricks X at 1 - No Wings
Now tap + in the XWings in the MAtricks window to set the value to two.

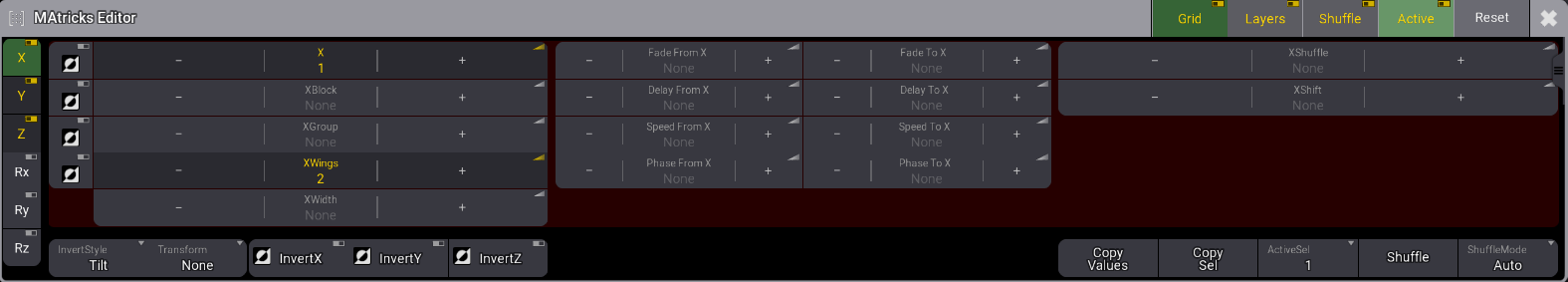

Ten fixtures with MAtricks X at 1 - XWings at 2
Now it looks like this

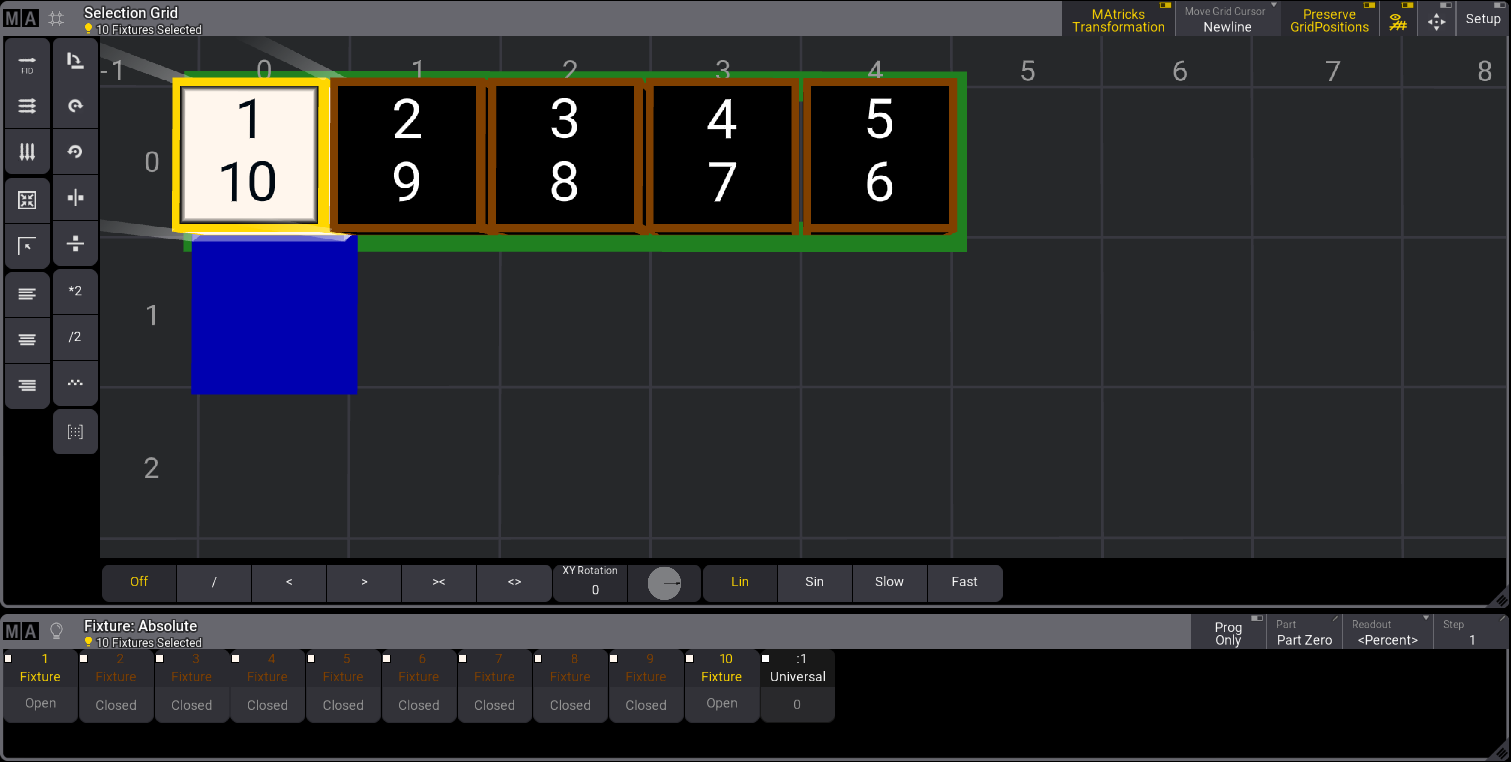

Ten fixtures with MAtricks X at 1 and XWings at 2
The selection is split into two wings, and each end of the selection is currently On.
Tap + to change the X number and move the highlighted selection towards the "center" of the selection. Tap - to change the X number and move the highlighted selection from the inside out of the selection. Using Next and Prev does the same.
Tap the video below to see the example.
