コネクタのピン配置

grandMA3 ユーザマニュアル » デバイスの概要 » コネクタのピン配置 Version 2.2

This page gives an overview of all connectors and their respective pinouts.

  • To receive more information, tap images below.

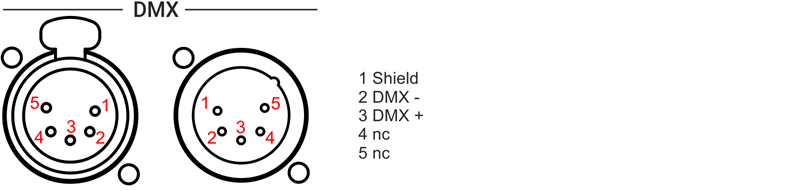

XLR Connectors



















D-Sub Connectors

GPI for grandMA3 consoles,  grandMA3 onPC command wing, command wing XT

RCA Connectors




1/8" (3.5mm) Jack Sockets



DIN Connectors



Phoenix Terminals

Power connector: MC 1.5/ 3-ST1-5.08



LTC connector: FK-MC 0.5/ 3-ST-2.5





DMX connector: FK-MC 0.5/ 3-ST-2.5



MIDI connector: FK-MC 0.5/ 3-ST-2.5



Remote connector: FK-MC 0.5/ 3-ST-2.5



Remote connector: FK-MC 0.5/ 7-ST-2.5

To show the rear panel connectors on the letterbox screens on grandMA3 light and full-size:

  1. Press Menu and then tap Output Configuration.
  2. To show the rear panel connector, enable Show Connectors button.

or use the command line:

User name[Fixture]>Menu "ConnectorView"
