DMXリモート

grandMA3 ユーザマニュアル » リモート入出力 » DMXリモート

Version 2.2

The DMX Remotes tab uses DMX channels as remote triggers. The DMX source can also be the console itself.

• To learn more about the hardware part of the input, read the Connect DMX topic.
• To learn more about the general Remotes settings, see Remote In and Out.

The following parameters are used in the DMX Remotes configuration:

• Address: Sets the DMX Address.
• Resolution: Sets the DMX Resolution.

---

Example

1. To adjust the settings of the DMX Remotes, tap DMX Remotes. The DMX Remotes menu opens:

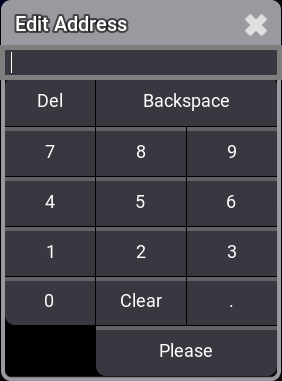

2. To set the DMX address the DMX Remote input should listen to, right-click or tap and hold Address.

3. To adjust the DMX resolution, open the Resolution cell of the DMX Remote entry you want to edit.

	ヒント
	The DMX Remote can be controlled by 16 bit or 24 bit DMX channels. This allows for more precise control.

	ヒント
	On the controlling DMX device, the 16 bit and 24 bit channels must be patched directly after the 8 bit channel.
