SMArt View

grandMA3 ユーザマニュアル » フィクスチャの操作 » SMArt View Version 2.2

The sMArt View is a dynamic pool that gives quick access to fixture defined channel sets. The channel sets are a part of the fixture types. Depending on the fixture selection and the selected attribute in the encoder bar, the pool objects in the sMArt window will change. Each pool object represents a channel set defined in the fixture profile.

To open the window, use the Add Windows pop-up, then tap Tools and tap sMArt. The windows opens:

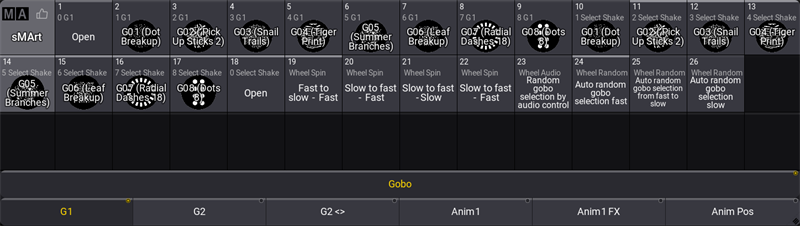

Smart View showing a gobo wheel
  • Tap one of the objects to put the respective value into the programmer.

The bottom of the sMArt view shows an attribute selection bar. This makes it easy to select the desired attribute in the currently selected feature group. The example above shows the Gobo feature group, the selected Gobo Wheel 1 (G1) attribute and the attributes G2, G2<>, Anim 1, Anim 1 FX, and Anim Pos.

  • To enable or disable the attribute selection bar, open the Pool Settings and tap Show Bottom Menu.

Edit sMArt Object

To edit the channel set values for a corresponding pool object:

  1. Edit a pool object. The Edit Fixture Type window opens.
  2. Enable Settings in the title bar.
  3. Change the values accordingly. For more information, see Insert DMX Modes and DMX Channels.
  4. Tap  to close the editor. The channel set values are changed.
